Modular solution for technical alarm management and level monitoring on vessels
Safety device designed for advanced monitoring of digital/analog inputs and control of critical equipment on vessels.
Precise control of water, fuel and waste tank levels with clear visualization and configurable alarms.
Automated management of pumps, ventilation and valves for optimal operation of vessel systems.
Connection with navigation systems for centralized management of all vessel technical data.

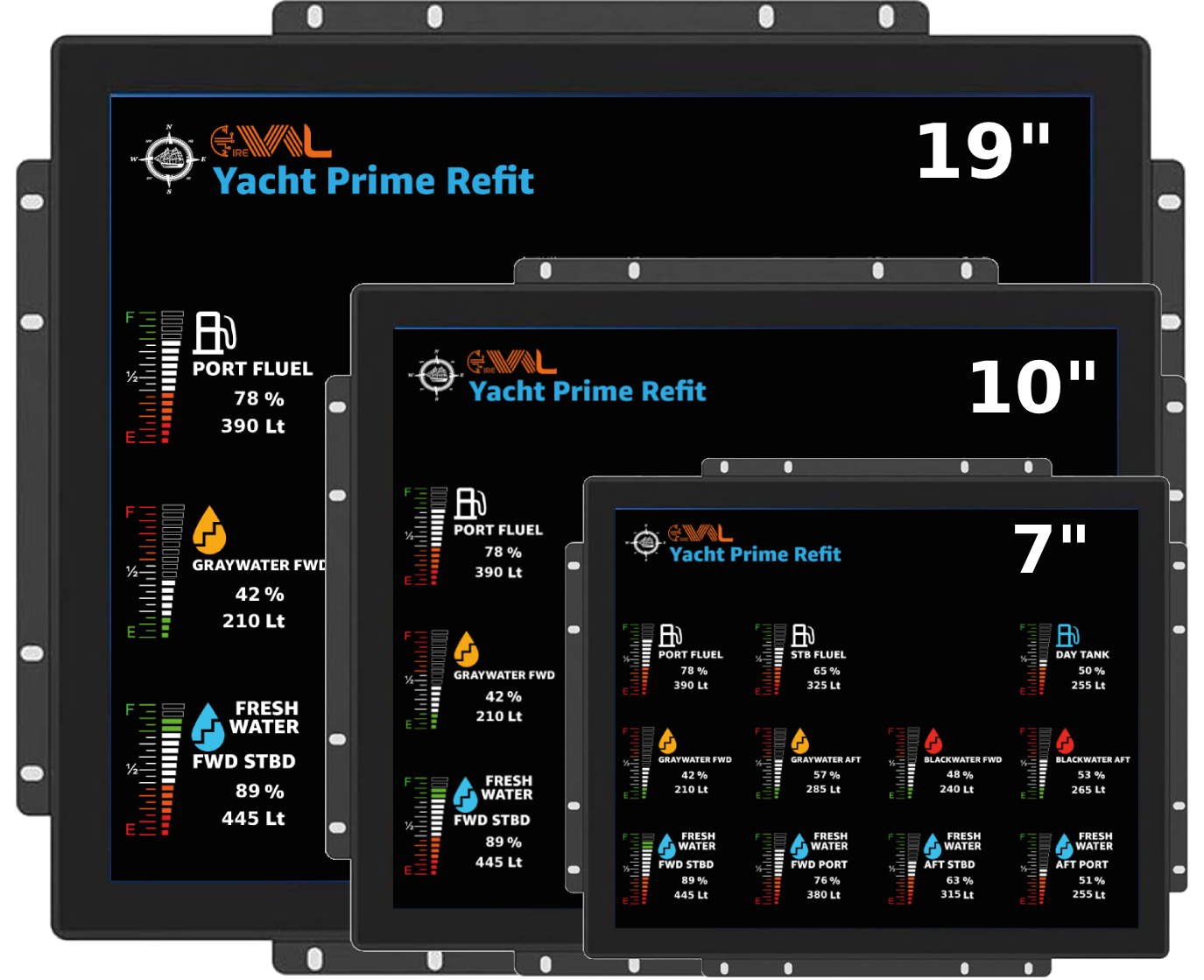

7", 10" or 19" (optional) color touch screen with clear alarm visualization and quick controls. Configuration adaptable to each vessel's specific needs.
| Component | Dimensions (mm) | Weight | Consumption (24VDC) |
|---|---|---|---|
| 7" Display | 176 x 135 x 29 | 1.0 kg | 0.3A |
| 10" Display | 261 x 180 x 38 | 1.5 kg | 0.5A |
| 19" Display | 482 x 307 x 60 | 4.5 kg | 1.2A |
| CPU | 168 x 133 x 40 | 0.5 kg | 0.2A |
| Modules (8XX) | 51.5 x 133 x 33 | 0.2 kg | 0.1A–0.5A |
Support for main and emergency power source (9-32VDC) for maximum reliability.
RS485 protocols for connection with external equipment and navigation systems.
Up to 64 inputs/outputs with interchangeable modules to adapt to any need:
Early detection of water in bilge with automatic pump activation.
Precise control of fuel levels and consumption in real time.
Automation of ventilation systems according to environmental conditions.
Monitoring and control of critical electrical systems.
